Animations

These 17 animation nodes move and animate objects in your OverMox scene. Use them to play, pause, resume, and stop animations, blend and scrub clips, read live playback state, react to playback events and marker crossings, tween position, rotation, or scale, and add motion like jiggle effects to alerts and overlays.

`AnimationTransition`

💡 Simple Explanation: Smoothly fades a new animation in while fading the previous ones out.

⚙️ Technical Description: Synchronous node that fades a new clip in while fading outgoing playbacks out through the OverMoxAnimator component; wire a PlayAnimation node’s Playback handle into From to fade only that playback, or leave From unwired to fade out all active playbacks.

AnimationTransition

🔍 Full Details & Examples

🔧 How It Works: When executed, it fades the incoming clip in while the outgoing playbacks fade out, shaping the crossfade with the chosen Easing curve. Wire a PlayAnimation node’s Playback handle into From to fade out just that playback; leave From unwired to fade out all active playbacks.

✨ Perfect For:

Smooth animation sequencing
Preventing overlapping animations
Clean state changes

👉 Inputs:

From (Handle) - Optional outgoing playback handle that scopes which playback the transition fades from
Time (Float) - Transition duration in seconds
Easing (Dropdown) - Fade easing curve for the transition ramp (Linear, EaseIn, EaseOut, EaseInOut); accepts a wired String override
Stop From After Fade (Boolean) - Stop the outgoing playback when the fade completes; enabled by default

🎬 Streaming Example: “Transition from idle to celebration animation cleanly.”

🎯 Tips: Wire a PlayAnimation node’s Playback handle into From to fade out exactly that playback; leave From unwired to fade out all active playbacks. Pick an Easing curve to shape how the fade ramps.

`Jiggle`

💡 Simple Explanation: Adds shake/wobble effect to objects. Great for impact or attention-grabbing.

⚙️ Technical Description: Synchronous node that adds or configures a jiggling component on a Scene Object with customizable power, frequency, tilt, and deceleration parameters.

Jiggle

🔍 Full Details & Examples

🔧 How It Works: Adds FJiggling component with configurable power, frequency, and dampening.

✨ Perfect For:

Impact effects
Screen shake
Attention-grabbing UI
Reacting to loud sounds

👉 Inputs:

(SceneObject) - Object to jiggle
Power (Float) - Strength of the shake
Tilt (Float) - Tilt intensity
Frequency (Float) - Speed of the shake
Decelorate (Float) - How quickly it stops
Speed (Float) - Animation speed
Constant Jiggle (Float) - Continuous jiggle amount
Random Level (Integer) - Random variation level

🎬 Streaming Example: “Shake screen when big donation comes in.”

🎯 Tips: Works on UI and 3D objects. Higher power = stronger shake. Deceleration controls how fast it stops.

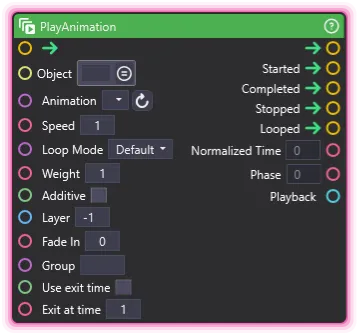

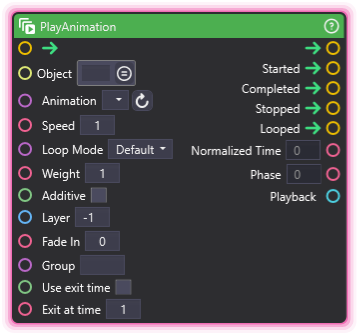

`PlayAnimation`

💡 Simple Explanation: Plays animation clips on objects. Supports crossfade transitions.

⚙️ Technical Description: UpdaterNode that plays animation clips on OverMoxAnimator components with ports for object, animation name, speed, loop mode, weight, additive layering, and fade-in, firing Started, Completed, Stopped, and Looped triggers alongside Normalized Time and Phase outputs, and supporting crossfade with AnimationTransition.

PlayAnimation

🔍 Full Details & Examples

🔧 How It Works: When triggered, it plays the named clip on the OverMoxAnimator component using the selected Loop Mode. Clips play concurrently, so a face and a body loop can coexist, and Fade In ramps this clip up while other active clips ramp out and stop. The Started trigger fires on launch, Looped fires once per completed loop, and Completed fires when the clip reaches its natural end.

✨ Perfect For:

Character animations
Animated effects
Object movement sequences

👉 Inputs:

(SceneObject) - Object with OverMoxAnimator
Animation (Dropdown) - Animation clip to play; accepts a wired String clip-name override
Speed (Float) - Playback speed (1 = normal, -1 = reverse)
Loop Mode (Dropdown) - Default (the clip’s own wrap mode), Once, Loop, PingPong, or ClampForever; accepts a wired String override
Weight (Float) - Blend strength from 0 to 1 for layering with other clips
Additive (Boolean) - When enabled, layers this clip on top of others instead of replacing them
Fade In (Float) - Seconds to ramp this clip in while other active clips ramp out and stop; 0 plays immediately
Group (String) - Optional group name recorded on this playback so group-scoped controls can address it
Use exit time (Boolean) - When enabled, the node exits at the specified normalized time
Exit at time (Float) - Exit at the specified normalized time

👈 Outputs:

Started (Trigger) - Fires when playback starts
Completed (Trigger) - Fires once at the clip’s natural end, no exit-time gate needed
Stopped (Trigger) - Fires when playback is stopped early
Looped (Trigger) - Fires per completed loop (a full round trip under PingPong)
Normalized Time (Float) - Raw playback progress (negative under a reverse loop, unbounded under PingPong)
Phase (Float) - Reflected clip-local position, always 0-1
Playback (Handle) - Live handle for this play; wire it into control or transition nodes to target exactly this playback

🎬 Streaming Example: “Play victory dance animation when donation goal reached.”

🎯 Tips: Requires OverMoxAnimator component. Clips play concurrently - different-region clips like a face and a body loop coexist happily, while two clips driving the SAME bones override each other unless you enable Additive. Use AnimationTransition for a clean crossfade, SetAnimationWeight to blend layered clips live, and a negative Speed to play in reverse. Loop Mode’s PingPong gives a back-and-forth bounce, and the Phase output stays a clean 0-1 even when Normalized Time runs negative or past 1 under looping.

`ResetAnimation`

💡 Simple Explanation: Returns an animation to its starting frame.

⚙️ Technical Description: Synchronous node that resets a specified animation clip to frame 0 by calling ResetAnimation() on the OverMoxAnimator component.

ResetAnimation

🔍 Full Details & Examples

🔧 How It Works: Resets specified animation clip to frame 0.

✨ Perfect For:

Loop preparation
State resets
Animation cleanup

👉 Inputs:

(SceneObject) - Object with OverMoxAnimator
Animation (Dropdown) - Animation clip to reset; accepts a wired String clip-name override
Playback (Handle) - Optional playback handle that takes precedence over Object + Animation; a live handle targets exactly that playback, a finished or unknown handle warns and does nothing, and leaving it unwired uses Object + Animation

🎬 Streaming Example: “Reset celebration animation before replaying for next donation.”

🎯 Tips: Useful before looping or re-triggering animations.

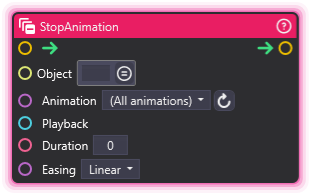

`StopAnimation`

💡 Simple Explanation: Stops one animation clip, or all of them when the Animation dropdown is set to (All animations).

⚙️ Technical Description: Synchronous node that stops a named clip on the OverMoxAnimator component, or every active clip on the Scene Object when the Animation dropdown is set to (All animations).

StopAnimation

🔍 Full Details & Examples

🔧 How It Works: Stops the named clip, or every clip playing on the Object when Animation is set to (All animations).

✨ Perfect For:

Emergency animation stops
State resets
Scene cleanup

👉 Inputs:

(SceneObject) - Object to stop animations on
Animation (Dropdown) - Defaults to (All animations); pick a clip to stop just one; accepts a wired String clip-name override
Playback (Handle) - Optional playback handle that takes precedence over Object + Animation; a live handle targets exactly that playback, a finished or unknown handle warns and does nothing, and leaving it unwired uses Object + Animation

🎬 Streaming Example: “Stop all animations when switching scenes.”

🎯 Tips: Defaults to (All animations); pick a specific clip to stop just that one. Pair with PauseAnimation if you want to freeze a clip in place instead of ending it.

`Interpolate`

💡 Simple Explanation: Blends between two values based on a percentage. Great for smooth transitions and calculations.

⚙️ Technical Description: Performs linear interpolation (lerp) between min and max values based on an interpolation parameter t (0-1).

Interpolate

🔍 Full Details & Examples

🔧 How It Works: Returns a value between min and max based on t. When t=0, returns min. When t=1, returns max. When t=0.5, returns the midpoint.

✨ Perfect For:

Smooth value transitions
Progress calculations
Blending between states
Percentage-based calculations

👉 Inputs:

Interpolant (Float) - The t value (0 to 1)
Min (Float) - Starting value (returned when t=0)
Max (Float) - Ending value (returned when t=1)

👈 Outputs:

Output (Float) - Interpolated result

🎬 Streaming Example: “Smoothly transition volume from 0 to 100 based on a slider input.”

🎯 Tips: Unlike tween nodes, this calculates instantly without animation. Use for mathematical blending, not motion.

`PositionTween`

💡 Simple Explanation: Smoothly moves an object from its current position to a target position over time.

⚙️ Technical Description: Animates a Scene Object’s transform.position to a target Vector3 using LeanTween with configurable easing and duration.

PositionTween

🔍 Full Details & Examples

🔧 How It Works: Uses LeanTween to smoothly animate position over time with easing curves for natural-looking motion.

✨ Perfect For:

Moving objects on screen
UI animations
Object entrance/exit effects
Camera movements

👉 Inputs:

(SceneObject) - Object to move
Position (Vector3) - Target position (X, Y, Z)
Time (Float) - Duration in seconds
Ease (Dropdown) - Easing curve type
Wait for Finish (Boolean) - Block execution until complete

👈 Outputs:

Trigger fires when tween completes

🎬 Streaming Example: “Slide a reward panel in from off-screen when a subscriber joins.”

🎯 Tips: Set Time to 0 for instant position change. Use easing like easeOutBounce for playful effects. Enable Wait for Finish to chain animations.

`RotationTween`

💡 Simple Explanation: Smoothly rotates an object from its current rotation to a target rotation over time.

⚙️ Technical Description: Animates a Scene Object’s transform.eulerAngles to a target rotation using LeanTween with configurable easing and duration.

RotationTween

🔍 Full Details & Examples

🔧 How It Works: Uses LeanTween to smoothly animate rotation over time with easing curves for natural-looking motion.

✨ Perfect For:

Spinning objects
Turning characters
UI element rotations
Visual attention effects

👉 Inputs:

(SceneObject) - Object to rotate
Rotation (Vector3) - Target rotation in degrees (X, Y, Z)
Time (Float) - Duration in seconds
Ease (Dropdown) - Easing curve type
Wait for Finish (Boolean) - Block execution until complete

👈 Outputs:

Trigger fires when tween completes

🎬 Streaming Example: “Spin a wheel 360 degrees when someone redeems channel points.”

🎯 Tips: Rotation values are in degrees. Use 360 for full rotations. Easing affects speed curve throughout the rotation.

`ScaleTween`

💡 Simple Explanation: Smoothly scales an object from its current size to a target size over time.

⚙️ Technical Description: Animates a Scene Object’s transform.localScale to a target Vector3 using LeanTween with configurable easing and duration.

ScaleTween

🔍 Full Details & Examples

🔧 How It Works: Uses LeanTween to smoothly animate scale over time with easing curves for natural-looking size changes.

✨ Perfect For:

Pop-in effects
Growing/shrinking objects
UI emphasis animations
Impact effects

👉 Inputs:

(SceneObject) - Object to scale
Scale (Vector3) - Target scale (X, Y, Z)
Time (Float) - Duration in seconds
Ease (Dropdown) - Easing curve type
Wait for Finish (Boolean) - Block execution until complete

👈 Outputs:

Trigger fires when tween completes

🎬 Streaming Example: “Make a notification pop up by scaling from 0 to 1 with easeOutBack for a bouncy entrance.”

🎯 Tips: Scale of (1,1,1) is normal size. Use (0,0,0) to shrink away. easeOutBack creates an overshoot bounce effect.

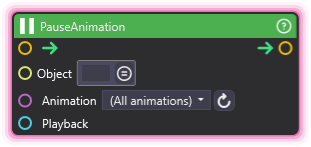

`PauseAnimation`

💡 Simple Explanation: Freezes a playing clip right where it is. Like hitting pause on a video, the pose holds until you resume it.

⚙️ Technical Description: Synchronous node that pauses one playing clip on the OverMoxAnimator component, or every playing clip on the Object when the Animation dropdown is set to (All animations).

PauseAnimation

🔍 Full Details & Examples

🔧 How It Works: Pauses the named clip in place, holding its current frame. Set Animation to (All animations) to pause every clip playing on the Object at once. Resume later with ResumeAnimation.

✨ Perfect For:

Freezing a character mid-pose
Holding a reaction on a big moment
Pausing overlays while you read chat
Timing a clip to a countdown

👉 Inputs:

(SceneObject) - Object with OverMoxAnimator
Animation (Dropdown) - Defaults to (All animations); pick a clip to pause just one; accepts a wired String clip-name override
Playback (Handle) - Optional playback handle that takes precedence over Object + Animation; a live handle targets exactly that playback, a finished or unknown handle warns and does nothing, and leaving it unwired uses Object + Animation

🎬 Streaming Example: “Freeze the hype animation mid-swing when a raid hits, then resume once you welcome the raiders.”

🎯 Tips: Pairs with ResumeAnimation to continue from the exact frame. Defaults to (All animations) to pause everything on the Object at once; pick a specific clip to pause just that one.

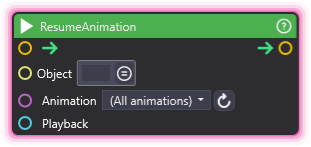

`ResumeAnimation`

💡 Simple Explanation: Restarts a paused clip from the exact frame it froze on. Like pressing play again after a pause.

⚙️ Technical Description: Synchronous node that resumes one paused clip on the OverMoxAnimator component, or every paused clip on the Object when the Animation dropdown is set to (All animations).

ResumeAnimation

🔍 Full Details & Examples

🔧 How It Works: Continues the named clip from the frame PauseAnimation stopped it on, at its original speed. Set Animation to (All animations) to resume every paused clip on the Object.

✨ Perfect For:

Continuing a held pose
Resuming overlays after a break
Restarting motion on a cue
Un-freezing a reaction

👉 Inputs:

(SceneObject) - Object with OverMoxAnimator
Animation (Dropdown) - Defaults to (All animations); pick a clip to resume just one; accepts a wired String clip-name override
Playback (Handle) - Optional playback handle that takes precedence over Object + Animation; a live handle targets exactly that playback, a finished or unknown handle warns and does nothing, and leaving it unwired uses Object + Animation

🎬 Streaming Example: “Resume the idle loop when you come back from a ‘be right back’ screen.”

🎯 Tips: Pairs with PauseAnimation. A clip has to be paused first, so resuming a clip that never paused does nothing.

`SetAnimationWeight`

💡 Simple Explanation: Sets how strongly a clip shows when it is layered with others. Weight 1 is full strength, 0 hides it.

⚙️ Technical Description: Synchronous node that sets the blend weight (0 to 1) of a clip on the OverMoxAnimator component, controlling how much it contributes when several clips play at once.

SetAnimationWeight

🔍 Full Details & Examples

🔧 How It Works: Applies a blend weight from 0 to 1 to the named clip live. At 1 the clip plays at full strength, at 0.5 it mixes half with other clips on the same bones, and at 0 it stops contributing. Change it while a clip plays for smooth layering.

✨ Perfect For:

Blending a face expression over a body loop
Fading a clip in or out by strength
Layering reaction animations
Mixing two poses live

👉 Inputs:

(SceneObject) - Object with OverMoxAnimator
Animation (Dropdown) - Clip to weight; accepts a wired String clip-name override
Playback (Handle) - Optional playback handle that takes precedence over Object + Animation; a live handle targets exactly that playback, a finished or unknown handle warns and does nothing, and leaving it unwired uses Object + Animation
Weight (Float) - Blend strength from 0 to 1

🎬 Streaming Example: “Blend a smile over your avatar’s idle by ramping its weight to 1 when chat spams the happy emote.”

🎯 Tips: Feed a changing Float to fade a clip in or out over time. Works with the Weight input on PlayAnimation, which sets a clip’s starting weight when it begins.

`SetAnimationSpeed`

💡 Simple Explanation: Changes how fast a clip plays while it is running. Negative speed plays it backwards, 0 freezes it in place.

⚙️ Technical Description: Synchronous node that sets the live playback speed of a clip on the OverMoxAnimator component, where 1 is normal, negative values play in reverse, and 0 pauses the clip.

SetAnimationSpeed

🔍 Full Details & Examples

🔧 How It Works: Applies a new speed multiplier to the named clip while it plays. A value of 1 is normal, 2 is double time, -1 runs it in reverse, and 0 freezes it like a pause. The change takes effect immediately.

✨ Perfect For:

Slow-motion replays
Speeding up idle loops on hype
Reversing an animation mid-play
Beat-matching motion to music

👉 Inputs:

(SceneObject) - Object with OverMoxAnimator
Animation (Dropdown) - Clip to adjust; accepts a wired String clip-name override
Playback (Handle) - Optional playback handle that takes precedence over Object + Animation; a live handle targets exactly that playback, a finished or unknown handle warns and does nothing, and leaving it unwired uses Object + Animation
Speed (Float) - Playback multiplier (1 = normal, -1 = reverse, 0 = frozen)

🎬 Streaming Example: “Drop an animation to slow motion when a rare drop appears, then snap it back to normal speed.”

🎯 Tips: Use a negative Speed to run a clip backwards without a separate reverse clip. Setting Speed to 0 freezes a clip much like PauseAnimation, but the clip keeps its speed setting instead of a paused state.

`SeekAnimation`

💡 Simple Explanation: Jumps a clip straight to a point in its timeline, from 0 at the start to 1 at the end. Like scrubbing a video to an exact frame.

⚙️ Technical Description: Synchronous node that sets a clip’s normalized time (0 to 1) on the OverMoxAnimator component, jumping it to that position in the timeline.

SeekAnimation

🔍 Full Details & Examples

🔧 How It Works: Moves the named clip to a normalized position, where 0 is the first frame, 0.5 is halfway, and 1 is the last frame. A seeked clip that is not playing holds that frozen pose until you PlayAnimation or StopAnimation it.

✨ Perfect For:

Scrubbing to an exact frame
Holding a specific pose
Snapping to a keyframe on a cue
Building manual timeline control

👉 Inputs:

(SceneObject) - Object with OverMoxAnimator
Animation (Dropdown) - Clip to seek; accepts a wired String clip-name override
Playback (Handle) - Optional playback handle that takes precedence over Object + Animation; a live handle targets exactly that playback, a finished or unknown handle warns and does nothing, and leaving it unwired uses Object + Animation
Normalized Time (Float) - Position from 0 (start) to 1 (end)

🎬 Streaming Example: “Snap your avatar to a victory pose by seeking the celebration clip to 1 when a goal is hit.”

🎯 Tips: Feed a slider or Float into Normalized Time to scrub a clip by hand. A seeked clip that is not playing stays frozen on that pose until you PlayAnimation or StopAnimation it.

`GetAnimationPlaybackState`

💡 Simple Explanation: Reads the live state of a playing clip - state, time, speed, weight, and more - into output ports.

⚙️ Technical Description: Synchronous node that reads a matching playback on the OverMoxAnimator component into output ports - Found, State, Time, Normalized Time, Cycle, Speed, Weight, and Group - where a wired Playback handle takes precedence over Object + Animation.

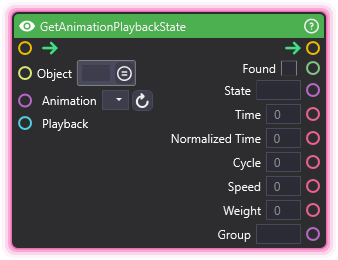

GetAnimationPlaybackState

🔍 Full Details & Examples

🔧 How It Works: When triggered, it finds the matching playback - a wired Playback handle reads exactly that playback, otherwise the first playback matching Object + Animation - and writes its live values to the output ports. Found reports whether a match was live; when no playback matches, Found is false, the value outputs are zeroed, and execution still continues.

✨ Perfect For:

Driving a UI readout from a clip’s normalized time
Branching a process on whether a clip is currently playing
Mirroring a playback’s speed or weight onto another object

👉 Inputs:

(SceneObject) - Object with OverMoxAnimator
Animation (Dropdown) - Clip to read; accepts a wired String clip-name override
Playback (Handle) - Optional playback handle that takes precedence over Object + Animation; a live handle reads exactly that playback

👈 Outputs:

Found (Boolean) - True when a matching playback was found; false when none matches, in which case the value outputs are zeroed
State (String) - Playback state of the matched playback: playing, paused, fading, or held
Time (Float) - Elapsed clip time in seconds
Normalized Time (Float) - Normalized clip time; may exceed 1 while looping
Cycle (Float) - Completed-cycle count
Speed (Float) - Playback speed multiplier
Weight (Float) - Blend weight
Group (String) - Group name recorded on the playback, or empty when it has none

🎬 Streaming Example: “Drive an on-screen progress bar from your intro animation’s normalized time.”

🎯 Tips: Wire the Playback output of PlayAnimation or OnAnimationEvent into Playback to read exactly that playback. Check Found before trusting the values - when nothing matches, the outputs read zero but execution still continues.

`OnAnimationEvent`

💡 Simple Explanation: Listens for animation playback events from any source and fires the matching trigger - Started, Completed, Stopped, Looped, Paused, or Resumed.

⚙️ Technical Description: Event node that hears playback lifecycle events from every source - graph nodes, direct actions, and transitions - and fires the matching trigger, with optional Object, Animation, and Group filters and data outputs carrying the event’s object, clip, group, and playback handle.

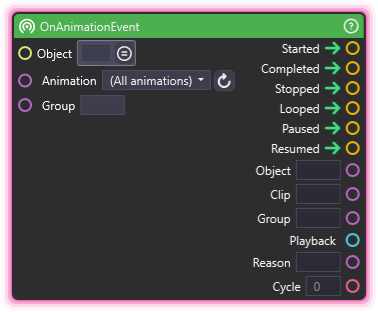

OnAnimationEvent

🔍 Full Details & Examples

🔧 How It Works: The node listens from the moment the graph runs; it has no trigger input. Each playback event that passes the filters updates the data outputs first, then fires exactly the matching trigger. Leave Object, Animation, and Group open to hear everything, including clips started outside the graph; set any of them to narrow which playbacks are heard. Reason fills in when Stopped fires and Cycle when Looped fires.

✨ Perfect For:

Reacting when a clip finishes, no matter what started it
Chaining a follow-up action every time a loop wraps
Watching a whole group of playbacks with one node

👉 Inputs:

(SceneObject) - Optional object filter; only events from this object fire the triggers, and leaving it unset listens to every object
Animation (Dropdown) - Optional clip filter; defaults to (All animations) to listen to every clip; accepts a wired String clip-name override
Group (String) - Optional group filter; only events from playbacks recorded with this group name fire the triggers, and leaving it empty matches any group

👈 Outputs:

Started (Trigger) - Fires when a matching playback starts
Completed (Trigger) - Fires when a matching clip reaches its natural end
Stopped (Trigger) - Fires when a matching playback is stopped
Looped (Trigger) - Fires each time a matching playback completes a loop
Paused (Trigger) - Fires when a matching playback pauses
Resumed (Trigger) - Fires when a matching playback resumes
Object (String) - Tag of the scene object the event came from
Clip (String) - Clip name the event came from
Group (String) - Group name recorded on the event’s playback, or empty when it has none
Playback (Handle) - Playback handle of the event’s session; wire it into a control or transition node to target exactly that playback
Reason (String) - Stop reason (natural, explicit, replaced, sceneUnload), populated when Stopped fires
Cycle (Float) - Completed-cycle count, populated when Looped fires

🎬 Streaming Example: “Fire confetti the moment your celebration clip finishes, even when chat started it through the API.”

🎯 Tips: The data outputs update before the trigger fires, so downstream nodes always read the event that fired them. Filter edits apply at event time - changing them live affects the next event without re-arming. Wire the Playback output into StopAnimation or AnimationTransition to control exactly the playback that raised the event.

`OnAnimationMarker`

💡 Simple Explanation: Fires its trigger every time a playing clip crosses a chosen position, no matter what started the playback.

⚙️ Technical Description: Event node that watches one clip for crossings of a normalized Position (0 to 1) and fires its trigger on every crossing, from any playback origin, with data outputs for the playback id, object, and completed-cycle count.

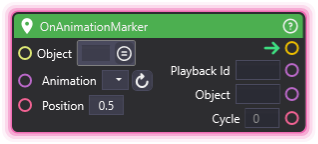

OnAnimationMarker

🔍 Full Details & Examples

🔧 How It Works: Pick the Animation and a Position between 0 (start) and 1 (end); the trigger fires each time a playing clip crosses that point, and the node listens from the moment the graph runs with no trigger input. Set Object to watch a single scene object, or leave it unset to watch every object playing that clip. Looping clips fire again each cycle; one-shot clips fire once. Paused or held clips fire nothing, and seeking a clip past the position does not count as a crossing.

✨ Perfect For:

Syncing a sound or effect to an exact moment in a clip
Firing once per loop at the same point in every cycle
Reacting at a precise position to playbacks started outside the graph

👉 Inputs:

(SceneObject) - Optional object filter; leaving it unset watches every object playing the clip
Animation (Dropdown) - Clip to watch; accepts a wired String clip-name override
Position (Float) - Normalized clip position to watch, 0 (start) to 1 (end); out-of-range values clamp

👈 Outputs:

Playback Id (String) - Session id of the playback that crossed the position
Object (String) - Tag of the scene object the crossing fired on
Cycle (Float) - Completed-cycle count of the playback at the crossing

🎬 Streaming Example: “Trigger a camera flash right at the peak of your jump animation.”

🎯 Tips: Position is clip-local, so 0.5 is always the middle of the clip no matter the speed. Under PingPong the watch fires on both the forward and reverse legs of each round trip. Unlike OnAnimationEvent, this node watches exactly one named clip - there is no (All animations) option.
